High Air Pressure DTH Hammer D25A Down The Hole Hammer For Blast Hole Drilling

1PCS
MOQ
Negotiate
Cena £
High Air Pressure DTH Hammer D25A  Down The Hole Hammer For Blast Hole Drilling
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Model: Down The Hole Hammer, DTH Hammer
Use: Down The Hole Drilling, DTH Drilling
Name Item: Water Well Drilling Equipment
Materials: High Manganese Steel
Machine: Hydraulic Crawler Drill Rig
Usage: Mineral Drilling, Exploration Core Drilling
Tools: Down The Hole Drilling Tools
Type: CIR, DHD, QL,SD, Mission, COP Series DTh Hammer
High Light:

dth drilling tools

,

down hole hammer

Podstawowe informacje
Miejsce pochodzenia: GERMANY,CHINA
Nazwa handlowa: ROSCHEN
Orzecznictwo: ISO,CE
Numer modelu: ROS64
Zapłata
Szczegóły pakowania: Wooden Box
Możliwość Supply: 5000pcs
opis produktu

High Air Pressure DTH Hammer HD25A



High Air Pressure DTH Hammer D25A Down The Hole Hammer For Blast Hole Drilling




DOWN THE HOLE DRILLING HAMMERS



DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.


Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.




Roschen offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.



Basic Info
Model NO HD25A-match Bit Shank Model HD25
Type Rotary Drilling Rig
Power Type Pneumatic
Trademark ROSCHEN
Specification SGS ISO
HS Code 84123100
Usage Coal, Ore, Water Well
Condition New
DTH Hammer




D25A DTH Hammer (D25)



Introduction:


It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world. high Air Pressure without foot value DTH Hammers.



Features:

1. Out of the trouble of foot valve fracture and expansion and contraction.

2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.

3. Simple structure, reliable parts, long life, easy and cheap maintenance.

4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.



Specifications:


HD25A DTH Hammer Technical Parameters
Length (exclude bit) Weight (exclude bit) External Diameter Bit Shank Hole Range Connection Thread
872 mm 16.00 kg Φ71 mm RS25 Φ76 mm ~ Φ90 mm T42 x 10 x 1.5
Working Pressure Impact rate at 0.5 MPa Recommended Rotary Speed Air Consumption
1.0 MPa 1.5 MPa
1.0~1.5 MPa 25 Hz 22-35 rpm 4 m³/min 6 m³/min





DTH hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11  ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min

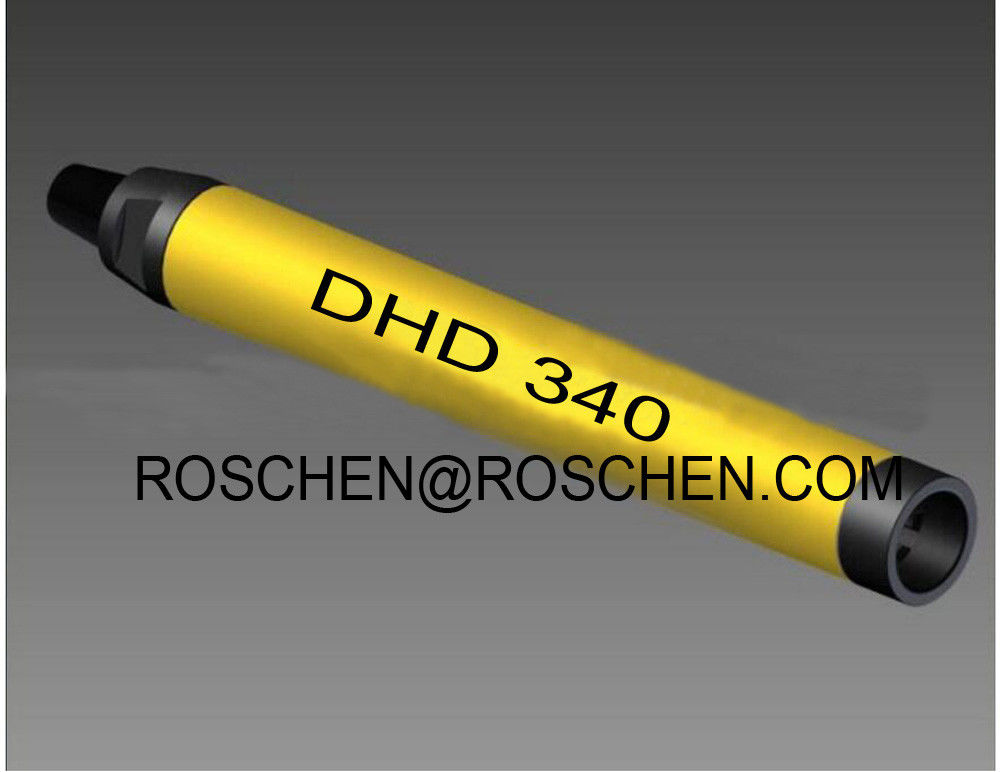

4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52  ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62  ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82  ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Metzke, Remet thread is available!
