RS 20 Multi function Geothermal Water Well drilling Rig with Truck mounted type optional

1 sets
MOQ
Negotiate
Cena £
RS 20 Multi function Geothermal Water Well drilling Rig with Truck mounted type optional
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Model: Water Well Drilling Rig
Type: Multi function Geothermal Water Well drilling Rig
Machine: Geothermal drilling Rig
Hammer: DTH hammer Drilling
Tools: DTH Button bits
Use: Top Hammer Drilling
Usage: Down The Hole Drilling
Name: Drill Rig, Atlas Copco Drill Rig
High Light:

rock drilling equipment

,

borehole drilling machine

Podstawowe informacje
Miejsce pochodzenia: Germany, China
Nazwa handlowa: ROSCHEN
Orzecznictwo: ISO
Numer modelu: RS-20
Zapłata
Szczegóły pakowania: Bundles
Możliwość Supply: 10000 sets
opis produktu

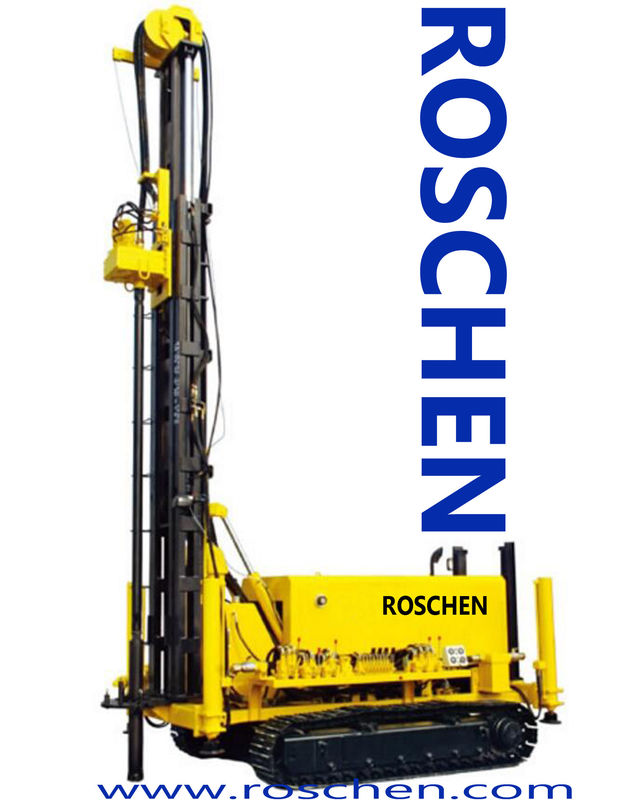

RS 20 Multi function Geothermal Water Well drilling Rig with Truck mounted type optional




KW 20 Multi function Geothermal Water Well drilling Rig (truck mounted type optional)








RS 20 Multi function Geothermal Water Well drilling Rig with Truck mounted type optional




RS 20 Multi function Geothermal Water Well drilling Rig (truck mounted type optional)





Our RS 20 water well drilling rig is suitable for drilling various holes and wells, such as the water well, in the earth. This deep hole drilling equipment can drill as deep as 200 meters holes.




A high pressure propulsion oil cylinder with big cylinder diameter and a high torque hydraulic rotating motor are available in this crawler drill. The crawler chassis of this well well drilling rig is especially manufactured for construction equipment, so the multifunctional well driller can pass various roads. The combined type positioning device can adjust the positioning plate according to the types of drill rod and drill hammer, ensuring the high precision drilling process.




Specifications:

Model RS20
Hole Diameter Ø152-254 mm
Hole Depth 200 mm
Air Consumption 20 - 40 m3/min
Working Pressure 1.05 - 2.46 Mpa
Ground Clearance 280 mm
Support Cylinder Stroke 1000 mm
Propulsion Cylinder Stroke 2400 mm
Propulsion Power 45 000 N
Lifting Power 95 000 N
Speed of Rotator Min.speed 60 rpm
Max.speed 105 rpm
Rotation Torque 4000 N.m
Walking Speed 0-2.5 km/h
Gradeability 25o
Engine
Engine Model YC6B125-K10
Power 92kw/2200rpm
Matching Drilling Components
Drill Hammer DHD360/DTH380
Rod Diameter Ø76/Ø89 mm
Length of Rod 3 000 mm
Overall weight 7500 kg
Overall dimension 5100x2300x2850 mm



Recommend below parts for RS20 Water Well Drilling Rig


Drill Bit diameter Ø115-254mm
Drill Rod(diameterxlength) Ø76x3000mm /Ø89x3000mm
Drill Hammer DHD360
