Crawler Hydraulic Open Air Blast Hole Drilling Rig Machine for Down The Hole Drilling

1 sets
MOQ
Negotiate
Cena £
Crawler Hydraulic Open Air Blast Hole Drilling Rig Machine for Down The Hole Drilling
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Name: Crawler Hydraulic Open Air Blast Hole Drilling Rig
Model: Crawler Hydraulic Rig
Type: Blast Hole Drilling Rig
Rocks: Open air blast hole drilling
Mines: Copper Mines, iron ore, plumboniobite, iron mine
Formations: nickel minerals, nickel ore
Drilling: Top Hammer drilling, bench drilling
Machine: Hydraulic jumbo
Functions: R32 thread button bits
High Light:

rock drilling equipment

,

borehole drilling machine

Podstawowe informacje
Place of Origin: Germany, China
Nazwa handlowa: ROSCHEN
Orzecznictwo: ISO
Model Number: RS-B-150, RS-B-180
Zapłata
Packaging Details: Bundle
Supply Ability: 1000 sets
opis produktu

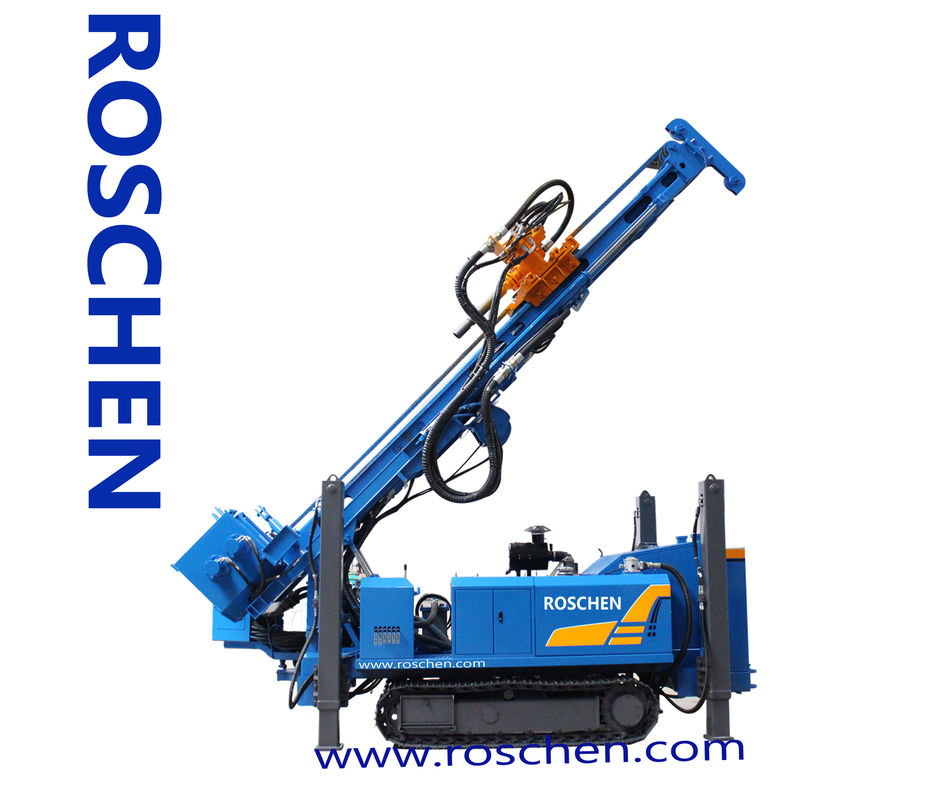

Crawler Hydraulic Open Air Blast Hole Drilling Rig


Crawler Hydraulic Open Air Blast Hole Drilling Rig for Down The Hole Drilling


Crawler Hydraulic Open Air Blast Hole Drilling Rig for Down The Hole Drilling


Description:



RS-B Series open air blast hole drilling rig is a combustion engine drive crawler type hydraulic drilling rig that is developed by our company. By adopting self-propelled hydraulic track chassis with favorable mobility and quipped with high power hydraulic motor, heavy hydraulic drilling boom and high air pressure DTH Hammer. The use of drilling rig RS-B series mainly covers strip mining, road construction and rock drilling process in the field of water power engineering. It is a down the hole drilling rig specially designed for open mine, stone pit and construction industry. Open air blast hole drilling rig RS-B Series adopts diesel engine. Hydraulic oil pump unit offers power to hydraulic motor feed, rotary, propulsion lift, and angle orientation of oil cylinder etc. Comparing with the full pneumatic drilling rigs, when drilling rig is working, the fuel consumption is saved up to 40-50%.



Advantages:


1. Good stability:

Simple mechanical arm, decrease the sliding frame joints and keeps the rig highly stable when the rig is working.



2. High efficiency, Lower operation cost

The drilling rig power is less than the drilling rig by air driven, which can save more than 10 lifters in one working hour, supplies more turning torque and feeding & hoisting power with hydraulic driven motor. It is better used for hammer of 90 - 165mm to smash and flake rock.



3. Favorable agility and flexibility

The drilling rig is a combustion engine driven hydraulic crawler drilling rig, adopting self propelled hydraulic track chassis and equipped with high power hydraulic motor, can provide better agility and performance through the floating joint of framework.




4. Full hydraulic control, low purchase cost

Hoist & feed system and rotary head are both driven by hydraulic power with easily operating. Its drilling can use low or high pressure compressing air, saves 1.5 times air volume as contrasted with the drill by air driven. It can reduce the total cost of drilling.


Techncial Parameters:

Technical Parameter Model
RS-B-150 RS-B-180
Hole Diameter 90~150MM 105~180MM
Max.Drilling depth 50M 50M
Adaptive rock Protodyakonov scale of hardness F8 ~ F20
Rotation Torque 3000 Nm 4000Nm
Rotary Speed 0~72rpm 0~72rpm
Lifting Capacity 32KN 35KN
Feed Stroke 4M 4M
Lifting Speed 0.5m/s 0.5m/s
Drill Rod Length 3M 3M
Drill Rod Diameter 76 / 89mm 76 / 89mm
Hammer Model ROS45A/ROS55A/ROS65A ROS45A/ROS55A/ROS65A
Travel Speed L:2.5KH/h H: 3.8Km/h L:2.5KH/h H: 3.8Km/h
Grade Ability 30o 30o
Wind Pressure 1.05~2.46Mpa 1.05~2.46Mpa
Air Consumption ≥16m3/min ≥18m3/min
Engine power 75Kw 75Kw
Dimension Length x Width x Height
Dimension on transportation 6200x2160x2500mm, plus dust removal system: 7100x2560x2750mm 6200x2160x2500mm, plus dust removal system: 7100x2560x2750mm
Dimension on working 4700x2560x5390mm, plus dust removal system: 4360x2560x5400mm 4700x2560x5390mm, plus dust removal system: 4360x2560x5400mm
Gross Weight (ton) 6.5 T, plus dust removal systems: 6.9 T 6.8 T, plus dust removal systems: 7.1 T
