2-7/8" Rotary Precision Drill Rod 10 ft Mayhew Junior Rods Pin To Box Friction Welded

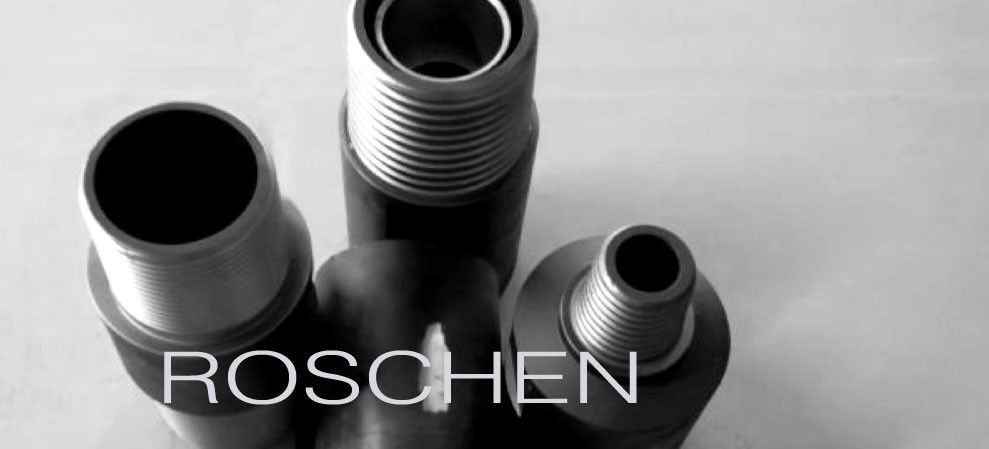

Rotary drill rod
Mayhew Junior rods pin to box Friction Welded
Roschen offers a wide rnage of rotary drill rods. Rotary rods are available in any size, length, and wall thickness, and with all thread connections and any custom flat configurations.
Due to the vast number of rotary drill rod options, we have listed only a sample of our standard offering in the table below.
Please contact your Roschen representative for additional details.
Specifications:
| Mayhew Junior rods pin to box Friction Welded | |||
| O.D. | Wall Thickness | Length | Thread |
| 2-3/8" | .254" | 20" | 2-38" IF |
| 2-7/8" | .308" | 5" | 2-3/8" MAYHEW JR. |
| 2-7/8" | .362" | 5" | 2-3/8" MAYHEW JR. |
| 2-7/8" | .308" | 10" | 2-3/8" MAYHEW JR. |
| 2-7/8" | .362" | 10" | 2-3/8" MAYHEW JR. |
| 3-1/2" | .250" | 20" | 2-3/8" IF |
| 3-1/2" | .368" | 20" | 2-3/8" IF |
| 3-1/2" | .368" | 20" | 2-3/8" IF |
| 4-1/2" | .337" | 5" | 3-1/2" API |
| 4-1/2" | .337" | 10" | 3-1/2" API |
| 4-1/2" | .337" | 20" | 2-7/8" IF |
| 4-1/2" | .337" | 20" | 2-7/8" IF |
| 4-1/2" | .337" | 20" | 2-7/8" IF |
| 4-1/2" | .337" | 20" | 3-1/2" API |
| 4-1/2" | .337" | 20" | 3-1/2" API |
