Conventional Diamond Core Drilling Depth Up To 550 Meters Drilling Solid Core Of Rocks
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Model: conventional core barrel
Drilling: drilling solid core of rocks
4C Core Barrel: core barrels for sale
Name: diamond core barrel
Type: concrete core barrel
Series: core barrel auger
Functions: rock core barrel
Model No.: rock core barrel sizes
Series Name: wireline core barrels
Use: core barrel drilling
Size: 4C Core barrel
Specification: 8C Core Barrel
Sales: meaning of core Sales
rock: Drilling holes in rock
Diamond: Diamond Core Rigs
Mechanics: The mechanics of diamond core drilling
Plant: Core recovery parameters
Item No: Drilling and Chipping Solid Rock
High Light:

triple tube core barrel

,

drilling core barrel

Podstawowe informacje
Miejsce pochodzenia: CHINA
Nazwa handlowa: ROSCHEN
Orzecznictwo: ISO
Numer modelu: 4C 8C
Zapłata
Szczegóły pakowania: Poly wooden box
Możliwość Supply: 10000 sets
opis produktu

Conventional Diamond Core Drilling Depth up to 550 meters Drilling solid core of rocks

Conventional Diamond Core Drilling Depth up to 550 meters Drilling solid core of rocks

Conventional Diamond Core Drilling

Core Drilling


Roschen have the capability to carry out diamond core drilling in various diameters - to depths up to 550m.

NLMC = 51.9mm diameter core, resulting in a 75.7mm diameter holes.

HQ3 = 63.5mm diameter core, resulting in a 96mm diameter hole

PQ3 = 83mm diameter core, resulting in a 122.3mm diameter hole

4C = 101.6mm diameter core, resulting in 139.7mm diameter hole.

Core drilling provides a continuous intact core sample from the borehole. Coring is the most expensive drilling option but provides the most detailed information on the rock material and allows sampling and laboratory testing of the samples.

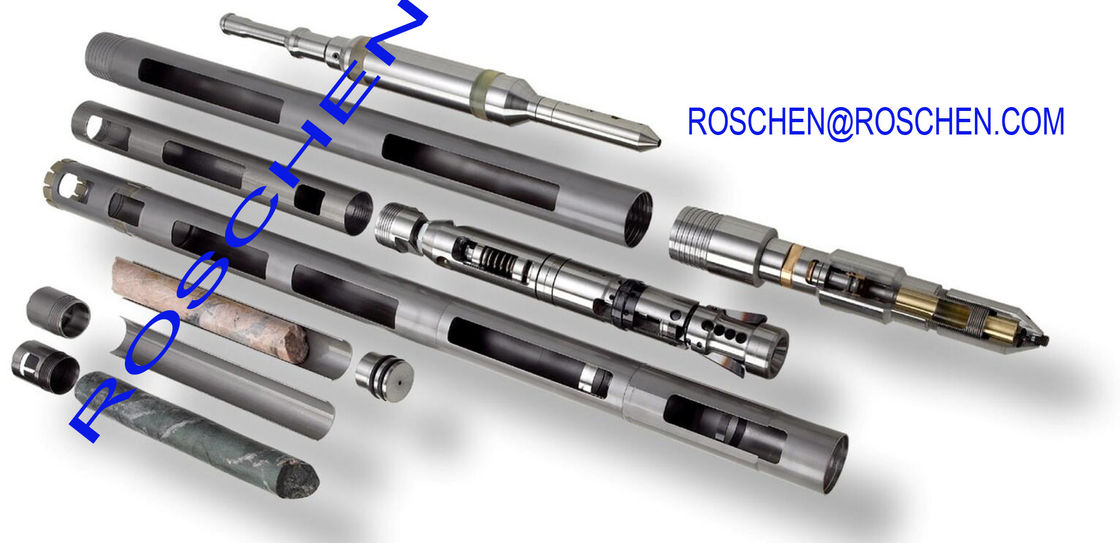

As the drill bit advances, a cylindrical core of rock progressively fills a triple tube core barrel (double tube barrels are also used by some companies) immediately above the core bit. Core samples are periodically recovered, (Roschen use 3.0m long core barrels,) at the end of the core "run" the complete barrel and the drill rods are pulled from the hole, the end of the barrel is disassembled by removing the core bit and catcher, the the stainless steel splits are then pumped out of the inner barrel by using high pressure water. The splits are then opened to reveal the core in virtually undisturbed condition.


Rotation speeds during diamond core drilling can vary up to 1500 rpm depending on the material being drilled and core size and drill bit being used. Penetration rates are slower than other methods generally due to the hardness and at times the weakness of the rock, plus the time taken to retrieve the core barrel when drilling at deeper depths. An alternative to Conventional core drilling is wireline core drilling this can speed the drilling progress up especially when drilling deeper holes -


Wireline Core Drilling
Roschen also have the capability to carry out wireline core drilling.

Wireline core drilling is the same principle as conventional core drilling whereby a solid core of rock is collected within the core barrel, the difference is how the core barrel is retrieved from the borehole. When the core barrel is full or the run is finished instead of the complete drill string - rods and core barrel being pulled from the hole, the core rods and outer core barrel remain in the hole and only the inner core barrel is retrieved by lowering a cable with an overshot down the core rods. The overshot attaches to the top of the inner tube/barrel of the core barrel and then the assembly is winched to the surface. The inner barrel is disassembled and the core pumped from the inner barrel as is done in conventional core drilling.

Wireline core drilling requires a completely different set of gear - bits, rods and associated tooling to that used for conventional core drilling which is not generally carried with the rigs at all times - please let your Roschen contact know if you require wireline core drilling prior to mobilisation to site.




Applications:

Does Roschen carry out Exploration drilling?

Yes, Roschen carries out exploration drilling - we have rigs with varying capabilities of up to 500m. We have previously worked on exploration projects all over Queensland and therefore have valuable experience in the field. We also have experienced site supervisors and geologists and are able to provide a "turn key" package

Does Roschen carry out Geotechnical Drilling?
Yes Roschen carries out geotechnical drilling and associated services. We have 5 rigs ranging from a small truck mounted auger rig with SPT capabilities, to our larger truck mounted drilling rigs which can reach depths of 350m plus. We also offer experienced geologists/geotechnical engineers for site supervision, project management, soil and rock logging, safety management and monitoring. We can carry out test pitting services with associated DCP testing and soil sampling.

Can Roschen drill water monitoring bores?
Yes, Roschen can drill water monitoring bores and install monitoring wells to detailed specifications.

Can Roschen carry out other geotechnical site services?
Yes, Roschen can carry out associated geotechnical site services such as Test Pitting and associated soil sampling and DCP testing, Window sampling, Service locating, Traffic management, Access creation, Site rehabilitation and Slashing

Can Roschen provide site supervision and professional services?
Yes, Roschen has experienced geologists/geotechnical engineers that can supervise the drilling rigs/excavators, Provide soil and rock logging services, Project management, Client liaison, Safety management, Safety monitoring and Factual reporting.

Does Roschen work interstate?
Yes, Roschen will work interstate

Do Roschen have inducted staff for mine and Petroleum and Gas sites?
Roschen have staff that are inducted onto various mine sites throughout Queensland plus several petroleum and gas sites such as Origin Energy, Santos, Arrow Energy, QGC, AGL amongst others.

What diameter borehole can Roschen drill?
Roschen can drill a variety of different diameter holes depending on the borehole/project requirements - ranging from 100mm diameter to 250mm diameter.



Systems of Core Barrels:



Size Hole diameter Core diameter
mm (in) mm (in)
A 48 (1.889") 27 (1.062")
WL46 47 (1.850") 28.8 (1.133")
TK48 48.5 (1.909") 35.4 (1.393")
B 59.9 (2.358") 36.4 (1.432")
WL56 56.8 (2.236") 41.2 (1.622)
TK60 60 (2.362") 43.9 (1.728")
N3 75.7 (2.980") 45.09 (1.775")
N 75.7 (2.980") 47.6 (1.875")
WL66 67.1 (2.641") 50.5 (1.988")
N2 75.7 (2.980") 50.7 (2.000")
WL76 76.3 (3.003") 57.5 (2.263")
H3 96.1 (3.783") 61.1 (2.406")
H 96.1 (3.783") 63.5 (2.500")
WL103 102.8 (4.047") 80 (3.149")
P3 122.6 (4.826") 83 (3.270")
P 122.6 (4.826") 85 (3.345")




Q series Core Barrel System Sizes
SIZE CORE Ø HOLE Ø
AQTK 35.5 mm (1-3/8 in) 48 mm (1-7/8 in)
BQ 36.4 mm (1-7/16 in) 60 mm (2-3/8 in)
BQTK 40.7 mm (1-5/8 in) 60 mm (2-3/8 in)
NQ 47.6 mm (1-7/8 in) 75.7 mm (3 in)
NQTK (NQ2") 50.6 mm (2 in) 75.7 mm (3 in)
NQ3 45 mm (1-3/8 in) 75.7 mm (3 in)
HQ 63.5 mm (2-1/2 in) 96 mm (3-3/8 in)
HQ3 61.1 mm (2-3/8 in) 96 mm (3-3/8 in)
PQ 85 mm (3-3/8 in) 122.6 mm (4-7/8 in)
PQ3 83 mm (3-1/4 in) 122.6 mm (4-7/8 in)
