Jumbo Hammer Utility Power Pole Cluster Drill For Creates Electric Pole Sockets In Hard Rock
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Model: Cluster drill
Name: Jumbo Cluster Hammer
Model No.: Atlas Copco Cluster drill
Drill: Utility power pole drills
Series: Super Jumbo Cluster Hammer Drill
Rig: Rotary drill rigs
Rocks: Drill for hard rock conditions
Drilling: DTH hammers drilling
Functions: Piling purpose
Purpose: Cluster hammer adopts the typical Bauer square drive
Use: several DTH hammers work together
Usage: Single Jumbo Cluster Hammer
Applications: Quarry drilling, coal mining, DTH drilling, Foundation Drilling, Tunneling
Supplier: Supplier: Cluster Hammer, Cluster Hammer Suppliers and Manufacturer
Machine Type: Drilling Tool
Type: Drill Bit
High Light:

dth drilling tools

,

down hole hammer

Podstawowe informacje
Place of Origin: GERMANY, CHINA
Nazwa handlowa: ROSCHEN
Orzecznictwo: ISO
Model Number: Diameter 600 ~ 1500 mm
Zapłata
Packaging Details: Poly wooden box
Supply Ability: 1000 sets
opis produktu

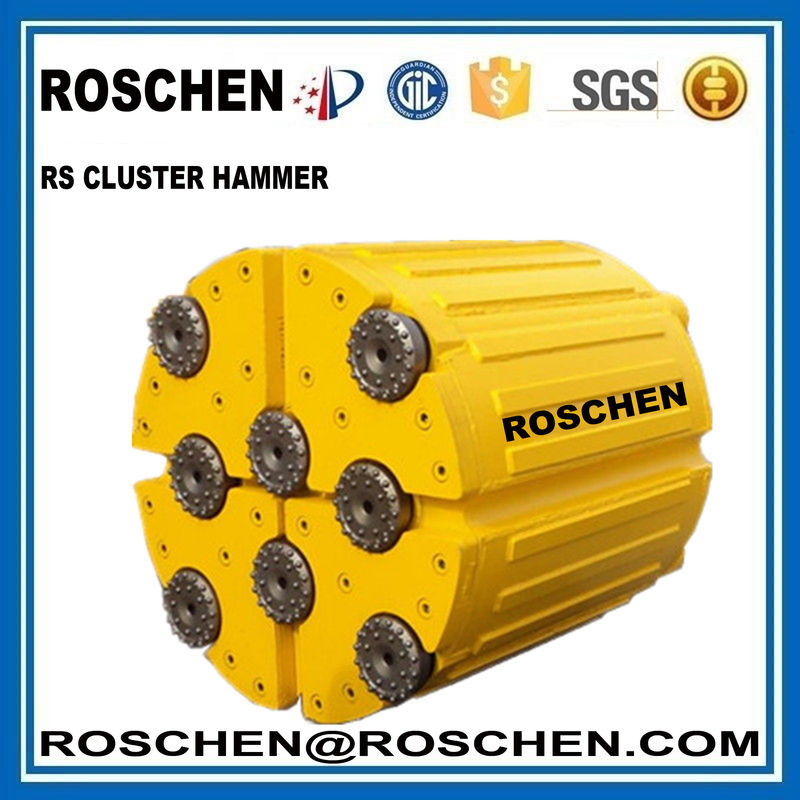

Jumbo Hammer Utility Power Pole Cluster Drill For Creates Electric Pole Sockets In Hard Rock


Jumbo Cluster Hammer Utility power pole drills, Cluster drills for Creates electric pole sockets in hard rock




ROSCHEN series Super Jumbo Cluster Hammer Drill, is designed to fulfill piling purpose on rotary drill rigs, especially under hard rock condition. We are the firstly and only one factory to produce this new products, This Jumbo Cluster Hammer adopts the typical Bauer square drive, which can match with most of the rotary drilling rig prevailing on the market.



To overcome the short of traditional rotary drill rig, low drilling efficiency in hard rock formation, the RS Cluster Hammer Drill adopts cluster method to let several DTH hammers work together, which makes it possible to use small size DTH hammers drilling big size holes. And in this way, the work efficiency is greatly improved by dozens of times, compared to traditional rotary drill.



According to the demand current market, we now launch 660mm, 800, 1000mm, 1200mm, 1300mm, and 1500mm diameter cluster hammer drill, and also we can customize specific sizes, according to particular demand of customers.



Model: RS 660



RS series Jumbo Cluster Hammer features

1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;

2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always



RS series Jumbo Cluster Hammer features:

1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;

2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always rotates under a sealed environment.

3. The pipeline takes strict standard high air pressure hose, and lower cost by selecting most suitable model according to different air consumption.

4. High pressure joints are applied between pipelines, together with anti-trip hinge, which is easy to dissemble and safe to use.

5. RS series cluster hammer has the advantage of reasonable structure, simply while reliable, easy to maintenance, convenient to use on rotary drill rig, and low cost.

6. RS series cluster hammer can be customized according to specific requirements.



Model: RS 660




P/N RS 660 Diameter (mm) 660
Height (mm) 1400(without pilot bit) Total height(mm) 2500
Weight (Kg) 1100 Total weight (Kg) 1800
No. of Sub-hammers 4
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 36 m³/min 72 m³/min 104 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.





ROSCHEN RS Series Cluster Hammer
Model RS 660 Diameter (mm) 660
Height (mm) 1400 (without pilot bit) Total height (mm) 2500
Weight (Kg) 1100 Total weight (Kg) 1800
No. of Sub-hammers 4
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 36 m³/min 72 m³/min 104 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 800 Diameter (mm) 800
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 1380 Total weight (Kg) 2300
No. of Sub-hammers 5
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 45 m³/min 90 m³/min 130 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1000 Diameter (mm) 1000
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 1900 Total weight (Kg) 3000
No. of Sub-hammers 7
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 63 m³/min 126 m³/min 182 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1200 Diameter (mm) 1200
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 2450 Total weight (Kg) 3500
No. of Sub-hammers 8
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 72 m³/min 144 m³/min 208 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1300 Diameter (mm) 1300
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 2640 Total weight (Kg) 3800
No. of Sub-hammers 8
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 72 m³/min 144 m³/min 208 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1500 Diameter (mm) 1500
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 3390 Total weight (Kg) 4900
No. of Sub-hammers 10
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 90 m³/min 180 m³/min 260 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.




RS series Jumbo Cluster Hammer features:



1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;

2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always rotates under a sealed environment.

3. The pipeline takes strict standard high air pressure hose, and lower cost by selecting most suitable model according to different air consumption.

4. High pressure joints are applied between pipelines, together with anti-trip hinge, which is easy to dissemble and safe to use.

5. RS series cluster hammer has the advantage of reasonable structure, simply while reliable, easy to maintenance, convenient to use on rotary drill rig, and low cost.

6. RS series cluster hammer can be customized according to specific requirements.




◆ RS series Jumbo Cluster Hammer features



1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;

2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always rotates under a sealed environment.

3. The pipeline takes strict standard high air pressure hose, and lower cost by selecting most suitable model according to different air consumption.

4. High pressure joints are applied between pipelines, together with anti-trip hinge, which is easy to dissemble and safe to use.

5. RS series cluster hammer has the advantage of reasonable structure, simply while reliable, easy to maintenance, convenient to use on rotary drill rig, and low cost.

6. RS series cluster hammer can be customized according to specific requirements.
