Hydraulic drilling rig for deep foundation crawler drill rig for construction drilling
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Model: Drilling Machine
Name: Drilling Rig
Item: Hydraulic drilling rig
Type: Deep Foundation Crawler Drilling Rig
Series: Crawler drill rig
Series No.: Hydraulic Crawler drill rig
Drill: Anchoring Drilling
Use: Jet grouting and dewatering
Drilling: Piling drilling
Sales: hydraulic drilling rigs for sale
Rigs: hydra fab well drilling rig
Machine: portable hydraulic drill
Trailer Rig: trailer mounted well drilling rig
Sells: small drilling rig for sale
Top Drive Rig: top drive drilling rigs
PTO Rig: pto well drilling equipment
Hydra Rig: hydra jet water well drilling
High Light:

rock drilling equipment

,

geothermal drilling rigs

Podstawowe informacje
Place of Origin: Germany,China
Nazwa handlowa: ROSCHEN
Orzecznictwo: ISO
Model Number: RS-150D
Zapłata
Packaging Details: wooden box
Supply Ability: 100/sets one month
opis produktu

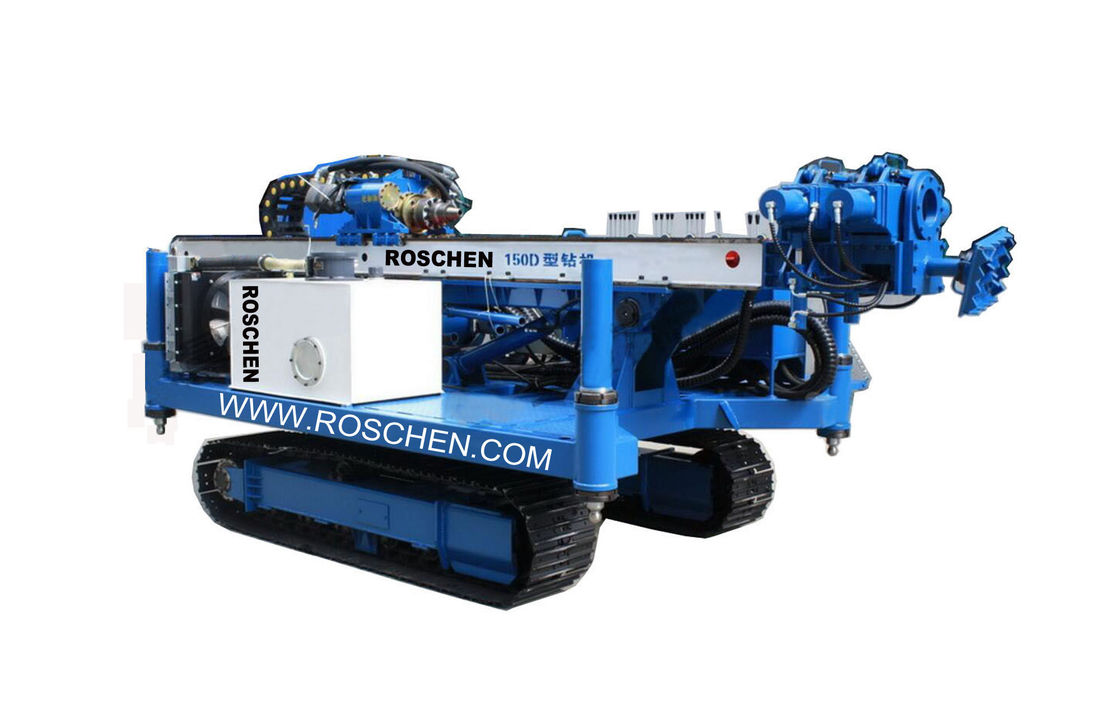

RS-150D Deep Foundation Crawler Drilling Rig

Hydraulic drilling rig for deep foundation crawler drill rig for construction drilling


RS-150D Deep Foundation Crawler Drilling Rig is high efficiency drilling rig mainly for anchoring, jet grouting and dewatering, which is well designed and produced by Roschen Group Limited. This series of drilling rig is all hydraulic operated drill in accordance with the construct requirements of subway, high rise building, airport and the other deep foundation pit.




Main characters:


1. The maximum speed is up to 170 r per minutes, and comparing the RS-135D, the speed has increased by 20%. When construct on soil, using twist drill can make the drilling efficiency more impressive.
2. Energy saving, high efficiency: Although the power remains the same, the work efficiency is highly improved.
3. Compared to RS-135D, the speed increases, and the torque has increased by 10% while the maximum rotary torque can achieve 7500NM.
4. With the new hydraulic system, the structure is simpler, the layout is more reasonable and the operation is more humanized.
5. Compared to RS-135D drilling rig, the drilling efficiency enhances by 20% or more.



Based on different stratum, we can adjust torque and rotary speed of drilling rig to increase drilling rig’s adaptability. At the same time, we can adjust torque and rotary speed according clients’ requests.


With the crawler, it has the following technical features: fast mobility, accurate location, time saving, good reliability and stability. It can also reduce labor intensity and increase efficiency after equipping the clamping and breaking device.



Our research development department also develops relative drilling tools to meet the following construction technology:


1. Anchor
2. Jet grouting
3. Mud positive circulating drill
4. DTH hammer impact drill by air.
5. DTH hammer impact drill by water
6. Multi-liquid reverse circulating drill.



Main Technical Parameters:
Model RS-150D
Hole diameter(mm) Ø150 - Ø250
Hole depth(m) 130-170
Rod diameter(mm) Ø73, Ø89, Ø102, Ø114
Hole angle(˚) 0 ~ 90
Output speed of power head(r/min) 10,20,30,35,40,60,70,85,130,170
Output torque of power head(N.m) 7500
Stroke of power head(mm) 3400
Stroke of slide flame(mm) 900
Lifting force of power head(kN) 70
Lifting speed of power head(m/min) 0 ~ 5 (adjustable)/7/23/30
Feeding force of power head(kN) 36
Feeding speed of power head(m/min) 0 ~ 10 (adjustable)/14/46/59
Input power(Electromotor)(kW) 55+18.5
Dimension(L*W*H)(mm) 5400*2100*2000
Weight(kg) 6000




For continuous improvement and development of products, structure and technical parameters are like to to improve without notice.
