Core Drilling Rig Machine Coring For Geology, Coal, Water Well Engineering Exploration Cor Drilling

1 sets
MOQ
Negotiate
Cena £
Core Drilling Rig Machine Coring For Geology, Coal, Water Well Engineering Exploration Cor Drilling
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Name: Core Drilling Rigs
Model: Impregnated Diamond Core Bits
Style: Wireline Diamond Coring Rigs
Function: Geological Drilling
Type: Engineering Exploration Core Drilling
Power: Cummins Diesel Engine
Use: Shallow Hole drilling rig
Usage: Africa Mining
Series: Wireline Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Applications: Copper Mining Drilling
High Light:

rock drilling equipment

,

geothermal drilling rigs

Podstawowe informacje
Miejsce pochodzenia: CHINA
Nazwa handlowa: ROSCHEN
Orzecznictwo: ISO
Numer modelu: RS-1
Zapłata
Szczegóły pakowania: Bundle Case
Możliwość Supply: 1000 sets
opis produktu

Core Drilling Rigs Drilling Coring For Geology, Coal, Water Well Engineering Exploration Cor Drilling


Core Drilling Rigs


Core drilling rig is composed of motor, variable speed, winch, gyrator, hydraulic parts, base, etc.

Drill rig is well-suited to drilling or coring for fields like geology, coal, metallurgy, water well, engineering exploration and so on.



As a leading drill rig manufacturer in China, we are equipped with complete design, manufacturing, inspecting and testing technology and equipment, and we offer products with wide range of output speed, large output torque and high wear parts enjoying long service life.

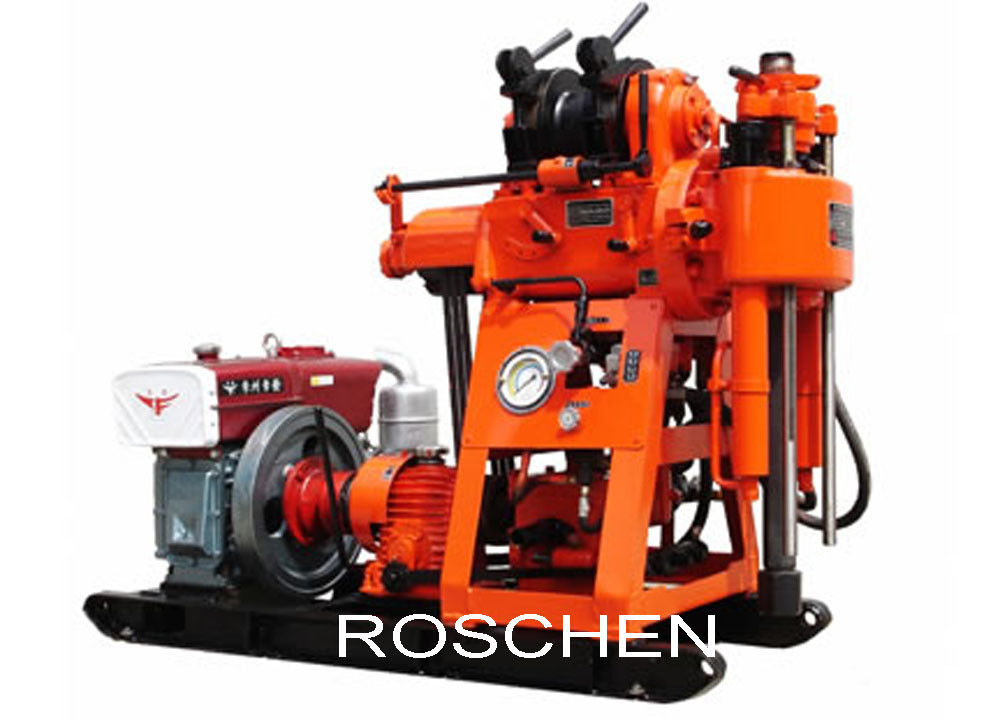

Model: RS-1



RS-1 core drill is a shallow hole drilling rig with oil pressure feeding. This core drill is applicable for general survey exploration, geophysical exploration, highway and construction exploration, small water well drilling, etc.



Features:
1. Automatic feeding mechanism realized by oil pressure helps to improve drilling efficiency and reduce labor intensity.
2. Ball cassette clamping mechanism helps to realize convenient, safe and reliable operation.
3. Easily operated handles. Pressure gauge at the bottom of hole can indicate the pressure, facilitating controlling conditions of the hole.
4. Compact structure with the drill rig, water pump and power machine (diesel engine or electromotor) assembled on the same chassis.
5. Light weight as well as easy to assembly, disassembly and move.



Specifications:


Basic Parameter Drilling Depth (m) 100
Final Hole Dia. (mm) 75
Pipe Dia. (mm) 42
Dimension (L × W × H) (mm) 1640 × 920 × 1240
Weight (kgs) 500
Spindle Rotational Speed (r/min) 142, 285, 570
Stroke (mm) 450
Max. Feeding Force (N) 14700
Max. Hoist Force (N) 24500
Winch Max. Hoist (1 speed, single rope) (N) 10000
Rotational Speed (m/s) 0.42, 0.81, 1.68
Water Pump Model Horizontal dual-acting single piston pump
Displacement (l/min) Diesel engine (1800 r/min): 100 Electric motor (1500 r/min): 83
Pump Pressure Max. Pressure (MPa) 1.5
Continued Pressure (MPa) 0.7
Power Machine Diesel Engine Model S1100N
Rated Speed (r/min) 2200
Power for 12 Hours (kW) 10.53
Electromotor Model Y131M-4-B3
Rated Rotational Speed (r/min) 1500
Rated Power(kW) 7.5





FAQ


Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.


Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.


Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.


Q: How about discount?
A: Price is based on products and order quantity.


Q: Do you accept sample order?
A: Yes sure, please contact us for details.


Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.


Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
